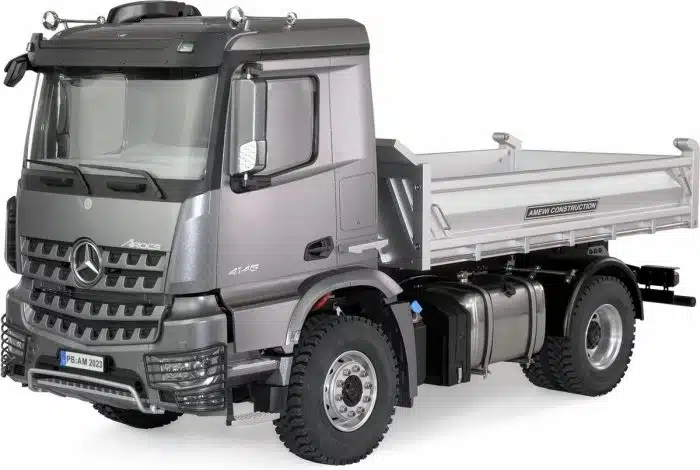

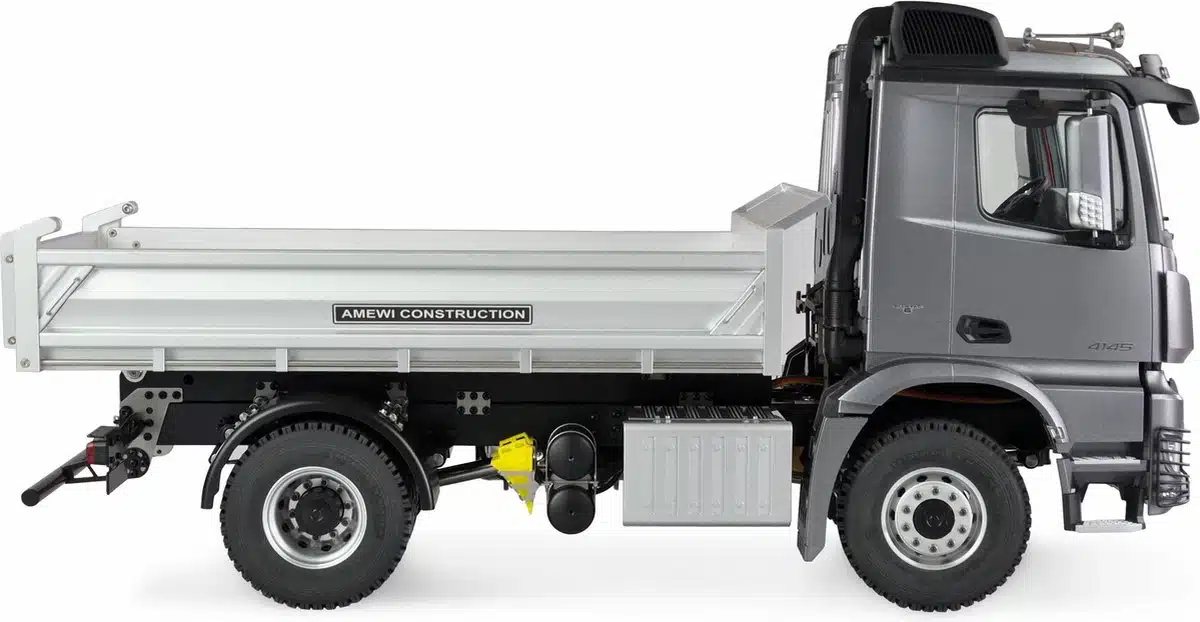

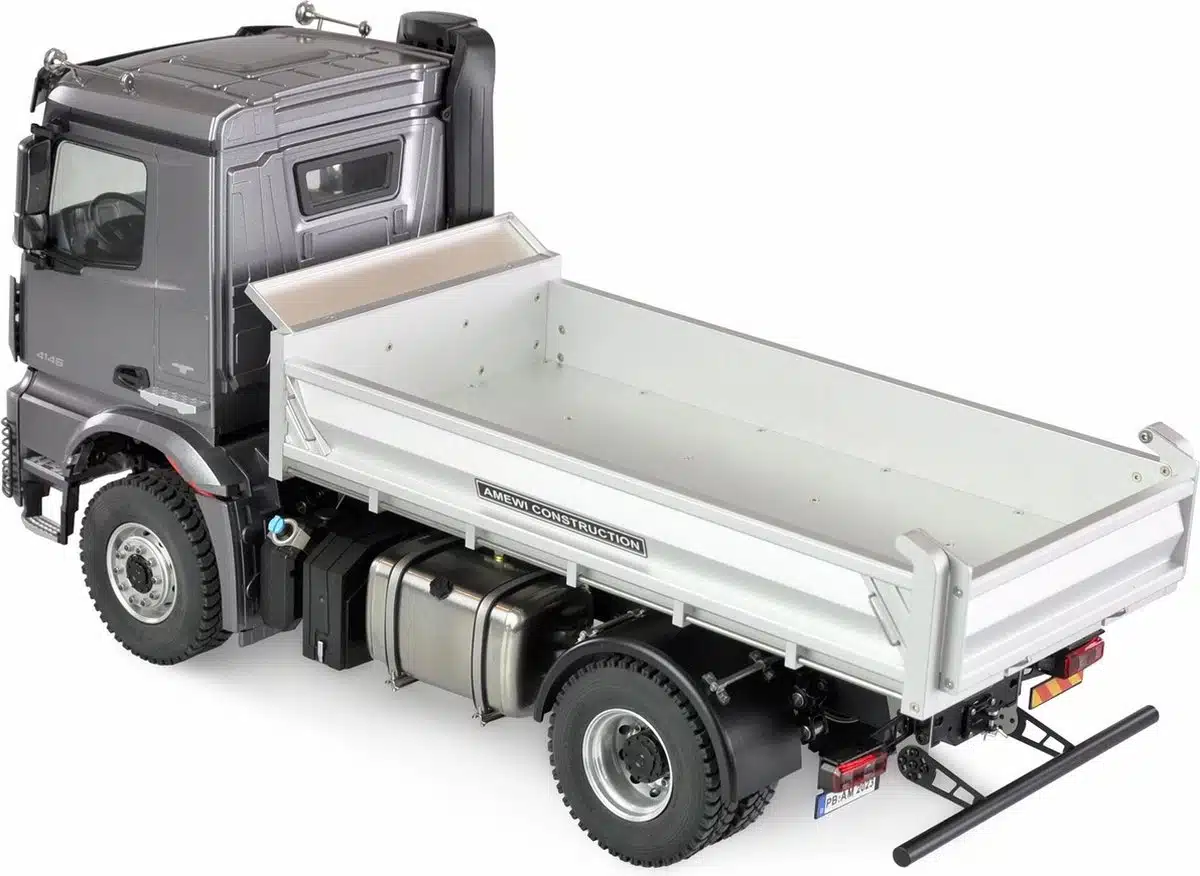

Exclusive licence truck from the Mercedes AROCS series, which impresses as a 4×4 model with hydraulically operated tipping function and makes the pulse of model builders beat faster thanks to its scale optics in 1:14 scale. All functions of the vehicle, which weighs in at 7.2 kg, can be controlled via the transmitter. Chassis, body, the entire drive train and all shafts are made of metal. This ensures maximum durability of the components. The scale driver’s cab with complete interior as well as the scale high-grip rubber tyres incl. scale rims made of metal round off the high-quality appearance.

Due to the high ground clearance (26mm) and the high dead weight, the model feels at home on any surface. A 540

Highlights:

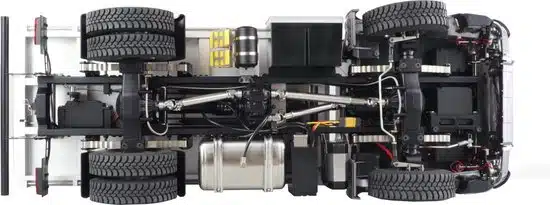

Full metal drivetrain: for maximum durability and proper off-road propulsion

Scale LED lighting: fully installed and switchable via transmitter, so nothing stands in the way of driving at dusk

Lockable differentials: possible via the transmitter for even more off-road propulsion

Other features:

RTR (Ready-to-Run) package including remote control, battery, charger and transmitter batteries

Exclusive Mercedes-Benz Arcos truck licence model

2-speed gearbox switchable via transmitter

Chassis and bodywork, with the exception of the driver’s cab, are made of metal

Shell cab with full interior

Scale high grip rubber tyres including scale metal rims

Heavy duty power steering with metal gears already installed

Drive axle with double tyres for maximum traction

4WD drive

Equipped with sound module

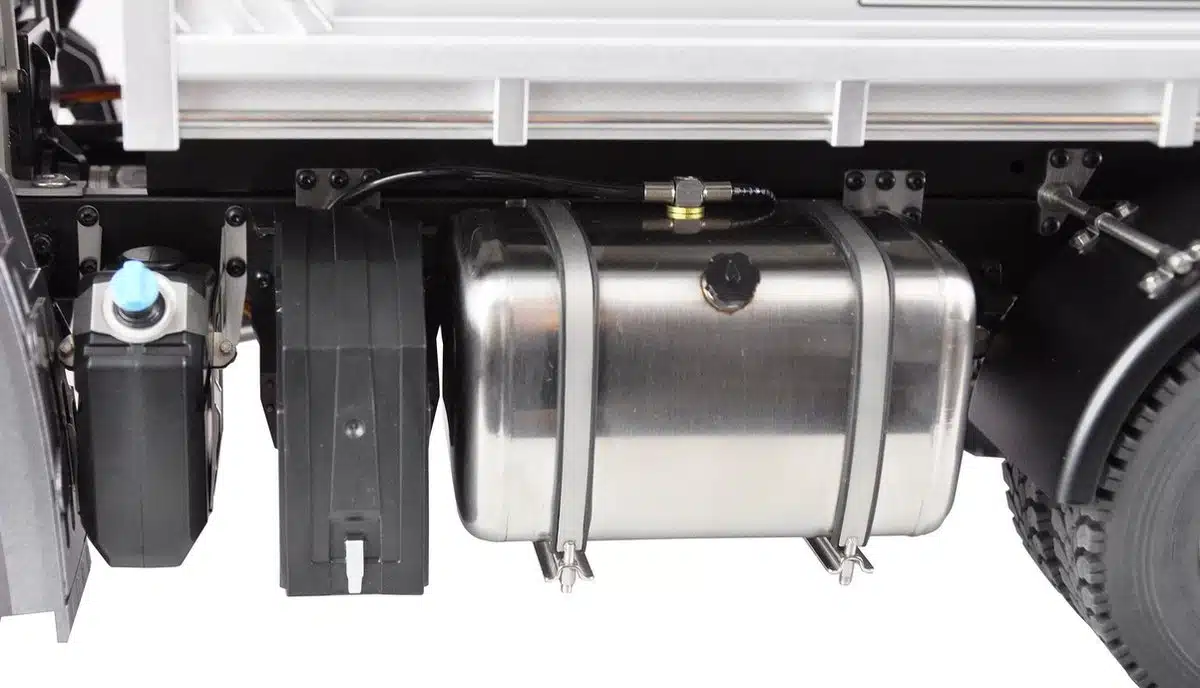

Many extra parts such as a horn, a fuel pump, a transport box and a protective grille for lamps are included in the delivery

Technical specifications:

Scale: 1:14

Length: 545 mm

Width: 208mm

Height: 273 mm

Weight: 7,2 kg

Wheelbase: 285 mm

Ground clearance: 26 mm

Front wheel: outside diameter 85 mm

Rear wheel: outer diameter 85 mm (double tyres)

Rim diameter: 50 mm

Gear: metal

Front shock absorbers: metal leaf springs

Rear shock absorbers: metal leaf springs

Brake: electronic

Regulator: 25A high class truck

Engine: 540 High Torque Brushed 55T

Drive system: Cardan

Steering servo: Standard MG

Main material: metal

Battery compartment dimensions: 145x45x35mm

Battery: Li-Ion 2S 7,4V 5000mAh, 10C round cells, XT60 connector, 135x37x24mm, 210g

Running time: 30-45min

Top speed: 4-5km/h

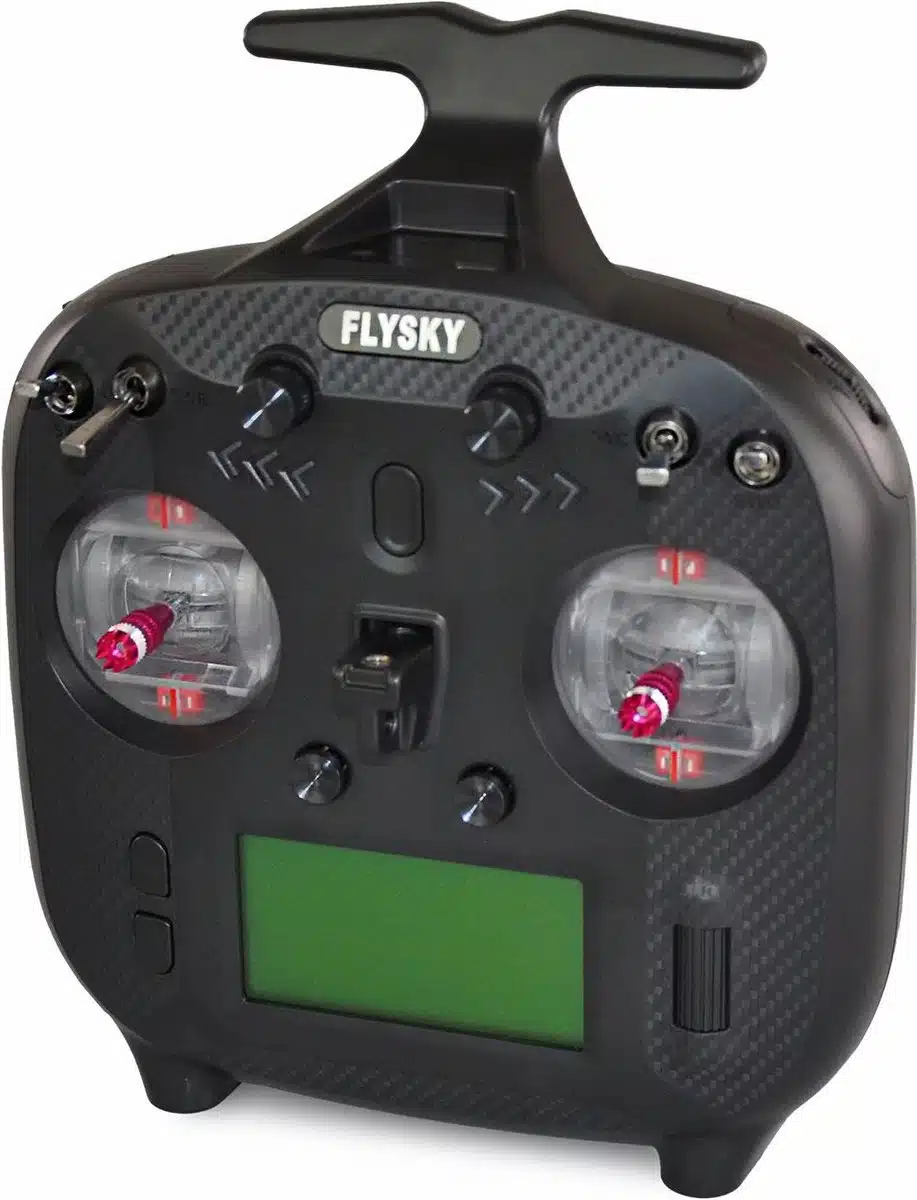

Remote control: 10-channel, 2.4GHz, 66 frequency channels, max. frequency power 15.77dBm

Range: 200m+

Charger: B3/220V, 3 x 800mAh output power

Charging time: 3-4 hours

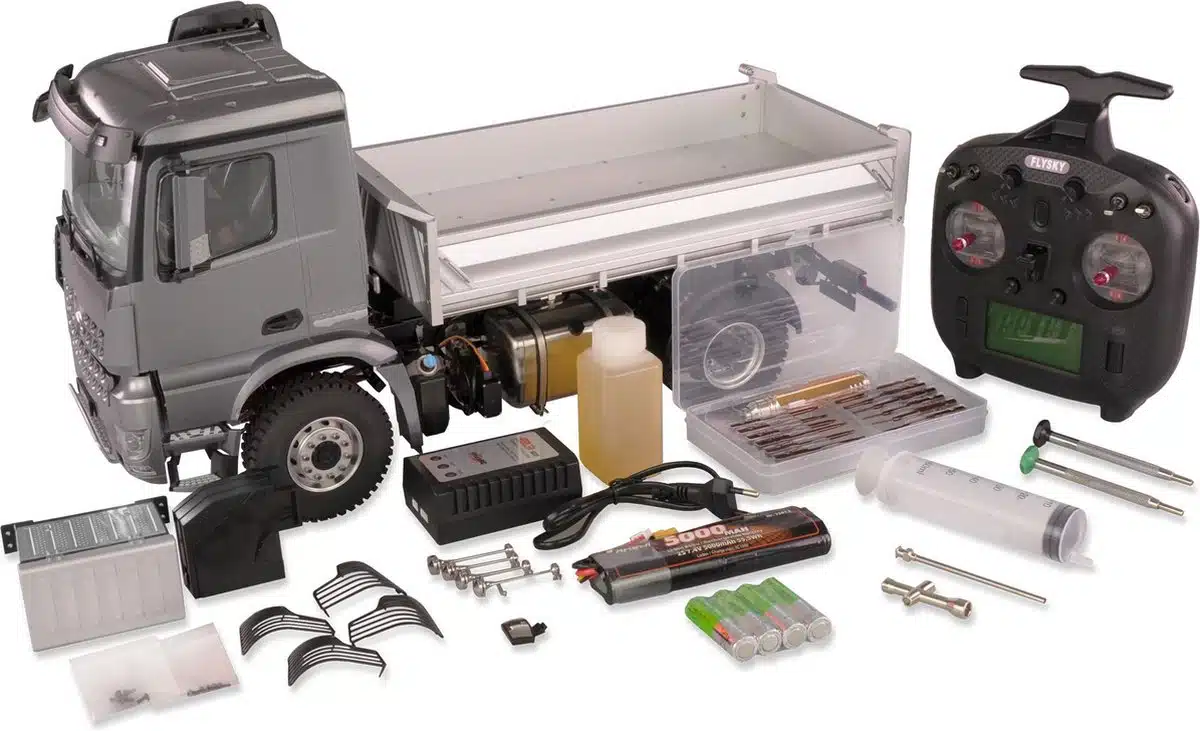

Scope of delivery:

model

Remote control

battery pack

Charger 220V

hydraulic oil

filling syringe

Various attachments

tool kit

sticker sheet

Batteries for the transmitter
